Understanding Living Hinges in Woodworking
Living hinges rely on a series of precise kerf cuts that remove enough material from plywood to permit bending while the remaining fibers maintain structural integrity. This method produces smooth curves in flat stock without the need for steam bending or layered laminations. Woodworkers apply the technique to achieve organic shapes that enhance both form and function in finished pieces.
The cuts follow repeating patterns, often generated through computer controlled routers or lasers. Spacing between cuts determines the radius of the bend as well as the flexibility of the final surface. Proper pattern selection prevents cracking and ensures the hinge area retains adequate strength for repeated movement or static loads.
Selecting Suitable Materials
Baltic birch plywood offers consistent density and minimal voids, which makes it the preferred substrate for living hinge projects. Thicknesses between one quarter inch and three quarters inch provide a balance between bend radius and load bearing capacity. Avoid particle board or low grade plywood because internal voids lead to weak points after cutting.
Material costs vary by sheet size and grade. A standard four by eight foot sheet of one half inch Baltic birch currently ranges from eighty to one hundred twenty dollars depending on supplier and market conditions. Factor in waste from test cuts when budgeting for a full scale furniture build.
Kerf Cutting Methods and Patterns
CNC routers produce the most repeatable results for production runs. Operators import vector files that define cut depth, spacing, and pattern geometry. Laser cutters work well for thinner stock but require careful power settings to avoid charring edges that could weaken the hinge.
Common patterns include straight parallel lines, staggered brick layouts, and wavy or hexagonal arrangements. Each pattern yields a different minimum bend radius and visual texture. Test cuts on scrap material confirm the final curve before committing to finished components.
Practical Applications

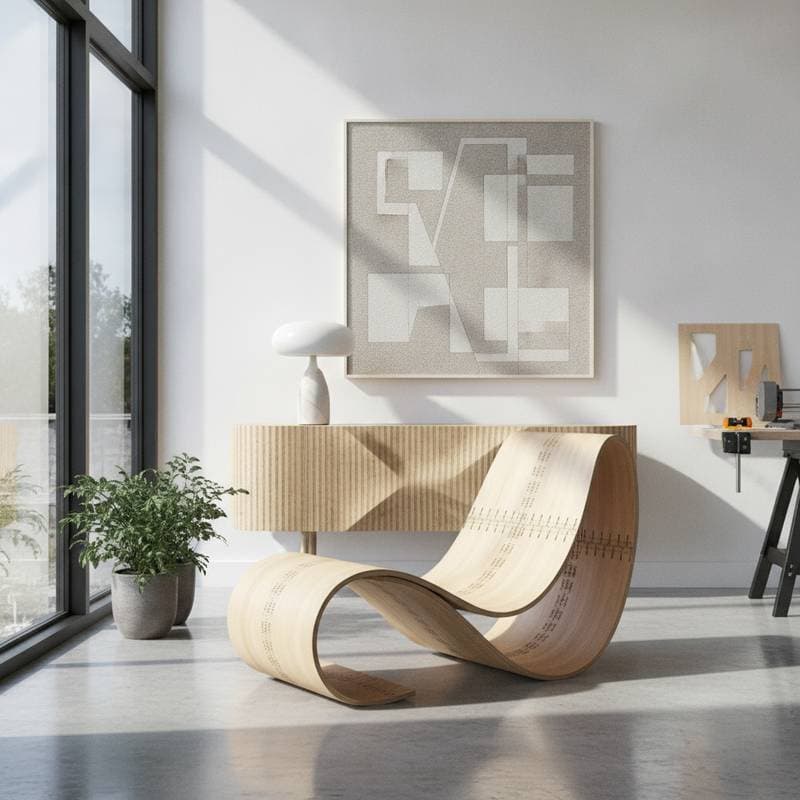

Designers incorporate living hinges into seating, lighting fixtures, and cabinet doors where a continuous curved surface improves aesthetics and reduces part count. The technique also supports rapid prototyping because a single flat sheet can become a three dimensional form after cutting and assembly.
Cabinetry makers use the method to create integrated handles or flexible dividers that adapt to irregular spaces. Lighting designers produce sculptural shades that diffuse light through the patterned surface itself.
Cost Considerations and Time Investment
Initial setup requires access to digital fabrication equipment or a skilled operator. Once the pattern file exists, cutting time for a typical chair component ranges from fifteen to forty five minutes. Finishing steps such as sanding and sealing add several hours depending on the desired surface quality.
Compared with traditional steam bending, living hinges eliminate the need for forms and extended drying periods. The trade off appears in material waste and the requirement for precise digital tooling.
Avoiding Common Errors
Overly aggressive cut spacing produces hinges that fracture under load. Insufficient spacing prevents the desired curve from forming. Always verify cut depth against plywood thickness to leave an unbroken layer of face veneer.
Edge alignment matters during assembly. Misaligned hinge sections create stress concentrations that shorten service life. Dry fit all components before applying adhesive or fasteners.
Refining Finished Pieces
Sanding the cut area smooth removes sharp edges and improves tactile quality. Apply a flexible finish such as oil or a thin film finish to protect the hinge without restricting movement. Periodic inspection of high use pieces reveals wear before failure occurs.
Properly executed living hinges deliver durable, visually striking furniture that expands design possibilities while controlling production complexity.
